Quality A H cage layer chicken cage
1. We can supply both steel structure chicken house and inner full set automatic equipment for both laying hens and broilers.
2. All the steel frame are glavanized steel.
3. Insulation:Glavanized steel sheet+glass wool composited on project sit or use EPS /glasswool sandwich panel.
4. For layer/laying hens:We can supply H type cage(bettery cage) and a type cage, feeding line/drinking line/manure clean system/spray indisfect system are all automatic.
5. For broilers:You can chose feed on floor or on the plastic floor,all the equipment we can supply.
6. We also can disign and supply equipment for you if you want to incubation.

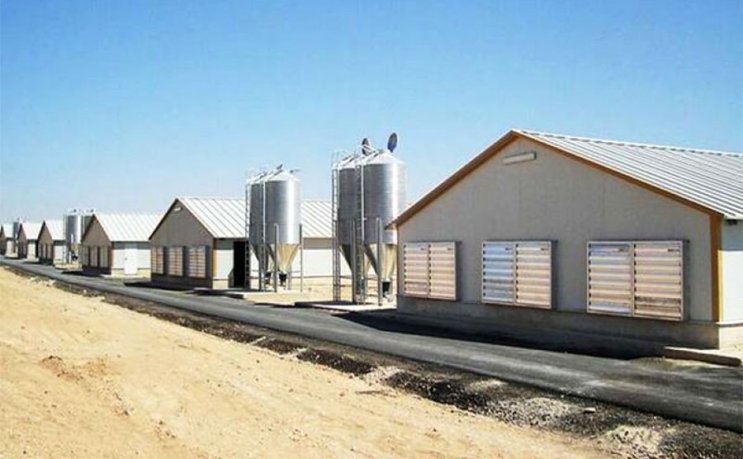

No. | Type | Steel structure poultry house |
Steel structure construction | Material | Main steel structure--Q345/Q235 |
Roof and Wall | Roof for v960 fibreglass sandwich panel, wall for V950 fibreglass sandwich panel | |
Door and Window | Aluminum alloy window;Rolled door | |
Column and Beam | Middle column, Welded H section | |
Purlin | C/Z section steel | |
Frame | Welded H beam and hot rolled steel | |
Surface treatment | Hot-dip galvanized | |
Lifetime | 30-50years | |
Equipments | Feeding system | |
Nipple drinker system | ||
Tunnel ventilation and heating system | ||
Curtain system:Automatic curtain machine | ||
Suspension system with ceiling winch | ||
Ventilation:External damper fan with cone | ||
Usage | Broiler, Chicken, Hens, etc rearing house | |
Design | Customized | |
Warranty | 12-18months | |
Delivery time | 20-35 working days | |
Packing | Steel frame is packed in 40'OT container, Maintenance frame and others are packed in 40'GP or 40'HQ | |
Advantages:
1. H type layer chicken equipment chicken shed Automatic Pan Feeding System The pan feeding system for broilers is solid and reliable through the application of high quality materials and components.Easy access for birds from day one to grow out.
2. H type layer chicken equipment chicken shed Nipple Drinking System Nipple Drinking System providing flesh and clean water for birds,which is very vital to let the birds have a good growing performance.Meanwhile,nipple drinking system can make the poultry house environment better.The nipple drinking system has been become the necessary equipment for stander poultry feeding.
3. H type layer chicken equipment chicken shed Main Feed line System When feed fill up base hopper, then it is transferred to the feeders by delivery system.The base hopper with qualities of large capacity, scientific design,firm structure, low cost, and with long life span
4. H type layer chicken equipment chicken shed Ventilation System This system controls climate conditions,fresh air,humidity and temperature in poultry shed,it's vital for growing birds.This system include poultry house fan, air inlet window.
5. H type layer chicken equipment chicken shed Cooling Pad System
Thickness specification:100mm,150mm
Width and Heightspecification:As requirement
Outer frame:Galvanized sheet and aluminum alloy, rust prevention treatment
Aluminum alloy frame:High strength, good corrosion resistance, even water distribution, compact structure, beautiful and practical.
6. H type layer chicken equipment chicken shed Heating system Special designing of heat preservation to ensure the lowest heat loss.Heat efficiency amounts to 80%-90% ,warming up fast, small volume, easy setting,high Reliability, low price.
7. H type layer chicken equipment chicken shed Environment Control System Based on the windows 2000 of the automatic environmental Monitoring Network System of poultry house.You can easily achieve centralized monitoring of environmental conditions within a certain ran.
What cages we supply?
A type | BYC-1 | BYC-2 | BYC-3 | BYC-4 | BYC-5 |
Type | 3tires, 4doors | 3 tires, 5 doors | 3 tires, 5 doors | 4 tires, 4 doors | 4 tires, 5 doors |
Capacity | 96 birds | 120 birds | 120 birds | 128 birds | 160 birds |
Size/door | 0.47*0.54*0.37m | 0.39*0.54*0.37m | 0.44*0.54*0.37m | 0.47*0.54*0.37m | 0.39*0.54*0.37 |
Size/Set Cage | 1.88*2.3*1.5m | 1.98*2.3*1.5m | 2.2*2.3*1.5m | 1.88*2.5*1.8m | 1.98*2.5*1.8m |
We also have 200 birds, 256 birds capacity, and can be customized by customers' request.
