Wantai steel structure is a professional steel structure factory. We have many years experience on steel structure building especially on steel structure pultry house. Our products had been exported to many countries all over the world.
| MAIN PART | ITEM | SPECIFICATION |
| Main Steel Frame | Steel Beam | Q235/Q345B |
| H shape steel, alkyd/epoxy zinc-rich painting primary painting in twice | ||
| Main Column | Q235/Q345B | |
| H shape steel, alkyd/epoxy zinc-rich painting primary painting in twice | ||
| Wind Column | Q235/Q345B | |
| H shape steel, alkyd/epoxy zinc-rich painting primary painting in twice | ||
| Supporting System | Brace | Q235/Q345B, angle steel or circular steel tube, process and paited |
| Roof Purlin | Q235/Q345B, C or Z shape steel, alkyd painting/hot dip galvanized | |
| Wall Purlin | Q235/Q345B, C or Z shape steel, alkyd painting/hot dip galvanized | |
| Tie Bar | Q235/Q345B, Φ114x3 round steel tube, process and painted | |
| Sag Rod | Q235/Q345B, Φ12 round steel, process and painted | |
| Roof Cladding | Color corrugate steel sheet, EPS sandwich panel, rock wool, PU, glass wool | |
| Wall Claddding | Color corrugate steel sheet, EPS sandwich panel, rock wool, PU, glass wool | |
| Accessories | Bolts | Ordinary, high strength, stud bolts, anchor bolts |
| Butter | 0.5mm galvanized/prepainted steel plate, stainless steel | |
| Windows | Aluminum alloy-glass, aluminum alloy-shutter, PVC | |
| Doors | Sliding sandwich panel/ steel door, rolling shutter door | |
| Floor Deck | #600, #688, #720, T:0.7-1.2mm thick color corrugated steel plate | |
| Down pipes | VC pipe or steel sheet material or aluminum pipe | |
| Roof Ridge | Color steel sheet | |
| Edge Cover | 0.5mm color steel sheet | |
| Skylighting | FRP light transfer belt | |
| Ventilator | Exhaust fan, ventilation louvers | |
| Crane | Crane in 5 tons to 20 tons | |
| Design Parmameters | Building Size | Length(m)*Width(m)*Eave Height(m) |
| Local Weather | Wind load, Snow load, earthquake magnitude | |
| Roof and wall panel | With or without insulation for roof and wall | |
| Bearing | Make the house resisting heavy wind by 120km/h and 8 grade earthquake | |
| Protection | Color steel sandwich panel has a good fire proof and heat insulation performance | |
| Packing | Main steel frame loaded in 40'OT, roof and wall panels loaded in 40'HQ |
In modern cow farm, steel cow farm building are widely used. We provide the absolute best protection building that you could get for your cow. We can build any size cow farm building according to your requirements. It is also possible to create some extra space for storage and repairs or maintenance. The frame of the building consists of H section steel columns, H section steel beams and C or Z section purlins, so the structure strong enough to hold up against intense winds and heavy snow to fully protect your cow. There are two kinds of cow barn: open type and close type, it depends on your local climate and your requirement.

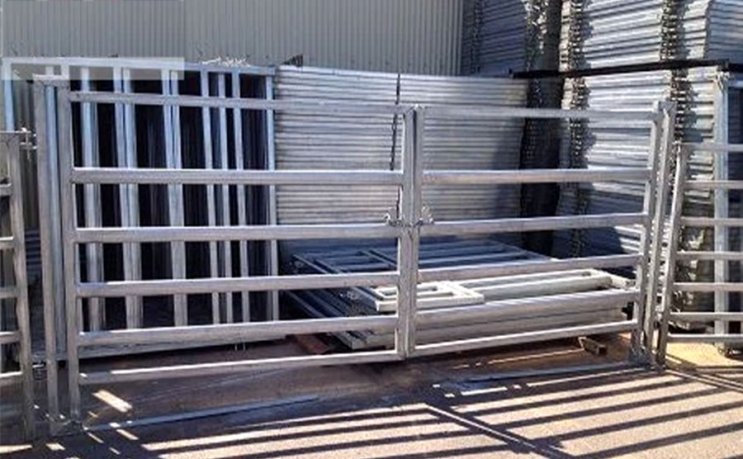

Description of cheap cattle panels for sale :
Materials: Carbon steel
Corrosion Form: hot-dipped galvanized or paint
Features: It can quickly and easily be installed, without the need to disturb the surface area by digging holes or laying foundations.
Main markets: Australia, European countries, Canada, America and Asia countries.
Description:
-1.8m high with 6 bars/rails or 1.6m high with 5 bars/rails.
-Complete with Caps & Foot plates.
-Holes for ground pin on one leg of each panel.
-Elongated lug holes in brackets, for ease when connecting.
Quality check & control
Production Processing & Shipping
