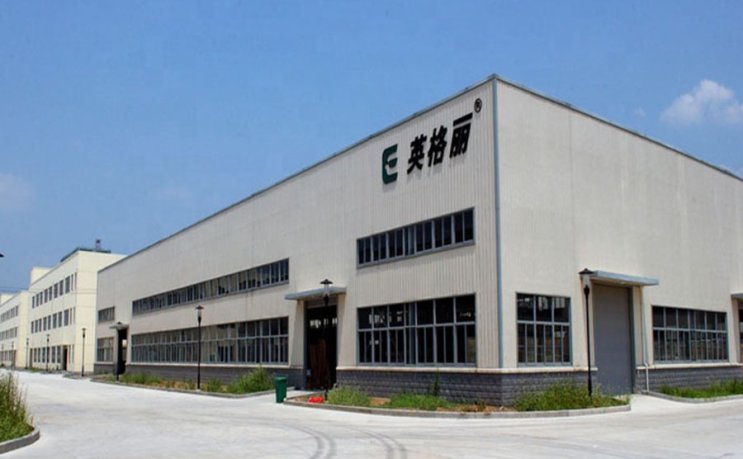

Prefabricated Steel Structure Warehouse

Basic Design Requirements Of Steel Structure Workshop/Warehouse

Basic Design Requirements

1. Project location

2. Snow load
3. Wind load
4. Seismic magnitude
5. Length (sidewall,m)
6. Width (end wall, m)
7. Wall Height (eave, m)
8. Middle column allowed or not
9. Window quantity, size
10. Door quantity, size
11. Brickwall needed or not. If yes, 1.2m high or 1.5m high
12. Crane needed or not
13. Thermal insulation. If yes, EPS, fiberglass wool, rock wool, PU sandwich panels will be suggested; If not, the metal steel sheets will be ok. The cost of the latter will be much lower than that of the former.

AutoCAD, PKPM, MTS, 3D3S, Tarch,Tekla Structures(Xsteel)V12.0.etc

Industrial Structural Steel Plant Factory Building Shed Design Price Fabrication Layout Low-Cost Prefab Steel Structure Warehouses

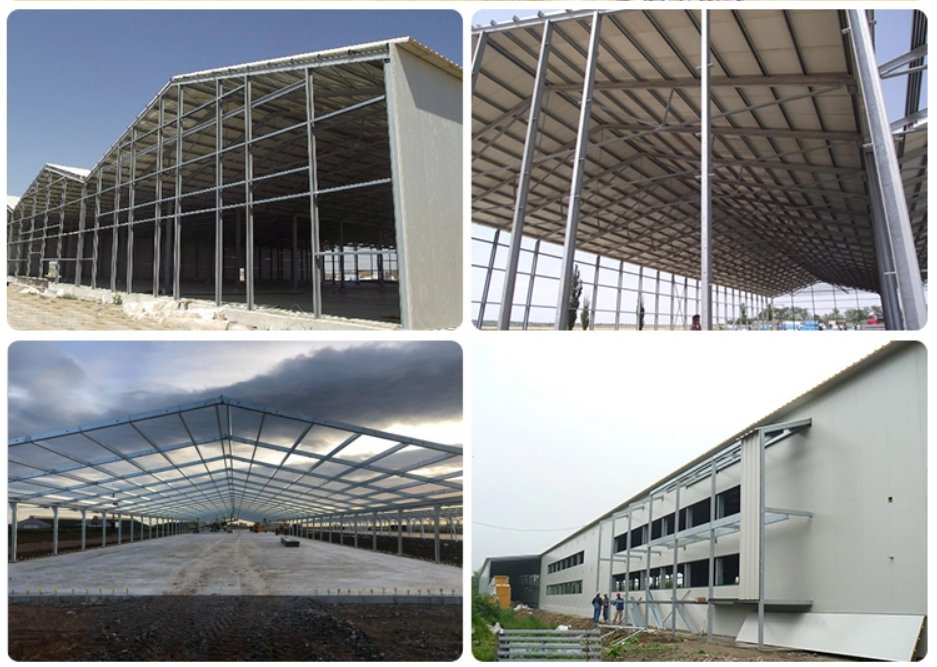

Steel structure building is built over three members connected to each other by bolts and screws:

Primary members (columns, beams)

Steel columns will be H section steel, square tube steel according to different type of buildings. Steel beams are usually H section steel.

Secondary members (C or Z purlins, bracing...)

Roof and wall sheeting or sandwich panel (EPS, fiberglass wool, PU sandwich panel)

Other building components (Rolling doors, aluminum ally windows, etc.)

The entire primary members and secondary members are designed and fully fabricated including cut-to-length, punching, drilling, welding and performing in the factory before shipping to the site for erection.

At the site, all components are assembled and jointed via nut & bolt connections; thereby reducing the costs and assembly times.

These buildings can be provided with different structural and non-structural additions such as ventilators, doors & windows, trusses, mezzanine floors, canopies, crane, insulation…, based on the customer's requirements.

Quality check & control
