Quick Details

Items

Specifications

Main Steel Frame

Column

Q235B, Q355B Welded H Section Steel

Beam

Q235B, Q355B Welded H Section Steel

Secondary Frame

Purlin

Q235B C and Z Purlin

Knee Brace

Q235B Angle Steel

Tie Rod

Q235B Circular Steel Pipe

Brace

Q235B Round Bar

Vertical & Horizontal support

Q235B Angle Steel, Round Bar, or Steel Pipe

Maintenance System

Roof Panel

EPS, Glass Fiber, Rock Wool, Pu Sandwich Panel

Corrugated Steel Sheet

Wall Panel

EPS, Glass Fiber, Rock Wool, Pu Sandwich Panel

Corrugated Steel Sheet

Accessories

Window

Aluminum Window, Plastic Steel Window

Door

Aluminum Door, Rolling Metal Door

Rainspout

PVC

Fastener

High Strength Bolts, Normal Bolts, Chemical Bolts

Ventilation System

Natural Ventilator, Ventilation Shutters

Live Load on Roof

In 120kg Sqm (Color steel panel surrounded)

Wind Resistance Grade

12 Grades

Earthquake-Resistance

8 Grades

Structure Usage

Up to 50 years

Temperature

Suitable temperature -50°C~+50°C

Certification

CE, SGS,ISO9001:2008,ISO14001:2004

Finishing Options

Vast array of colors and textures available


1) Customized design is welcomed.

2) We have an excellent design team. According to the requirements of different projects and clients, we will supply different designs and steel products. In order to give you an exact quotation and drawings, please let us know the following information. We will quote for you promptly.

Steel structure building is built over three members connected to each other by bolts and screws:


Primary members (columns, beams)

Steel columns will be H section steel, square tube steel according to different type of buildings. Steel beams are usually H section steel.

Secondary members (C or Z purlins, bracing...)

Roof and wall sheeting or sandwich panel (EPS, fiberglass wool, PU sandwich panel)

Other building components (Rolling doors, aluminum ally windows, etc.)

The entire primary members and secondary members are designed and fully fabricated including cut-to-length, punching, drilling, welding and performing in the factory before shipping to the site for erection.

At the site, all components are assembled and jointed via nut & bolt connections; thereby reducing the costs and assembly times.

These buildings can be provided with different structural and non-structural additions such as ventilators, doors & windows, trusses, mezzanine floors, canopies, crane, insulation…, based on the customer's requirements.


photobank (29)

Engineering Design Software

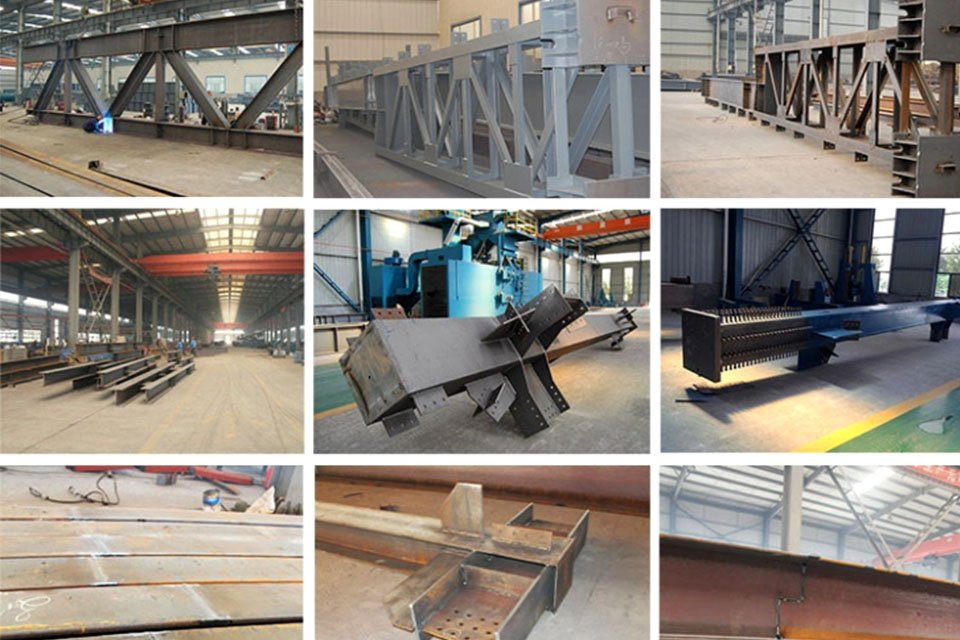

Quality check & control

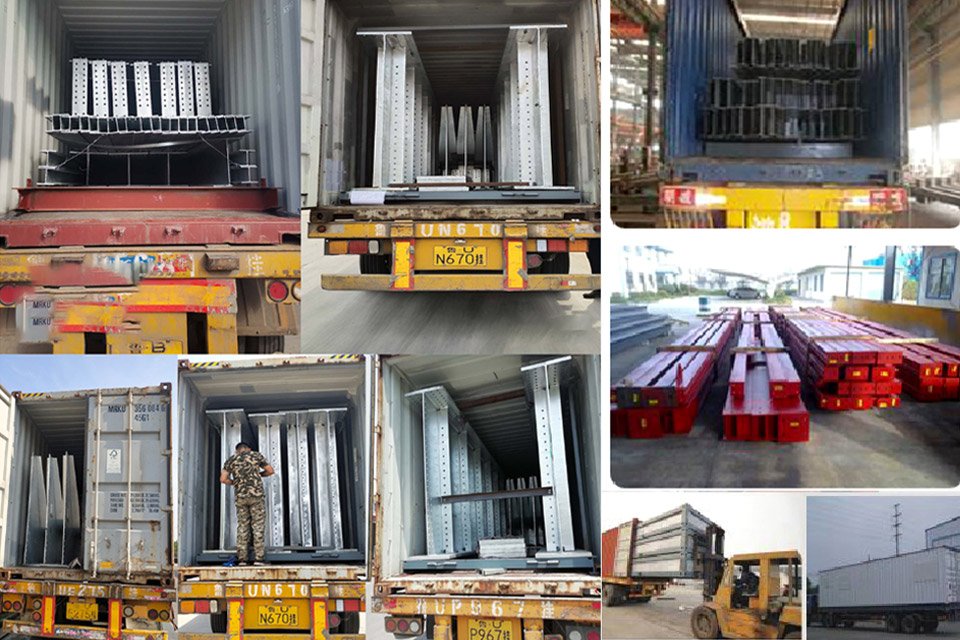

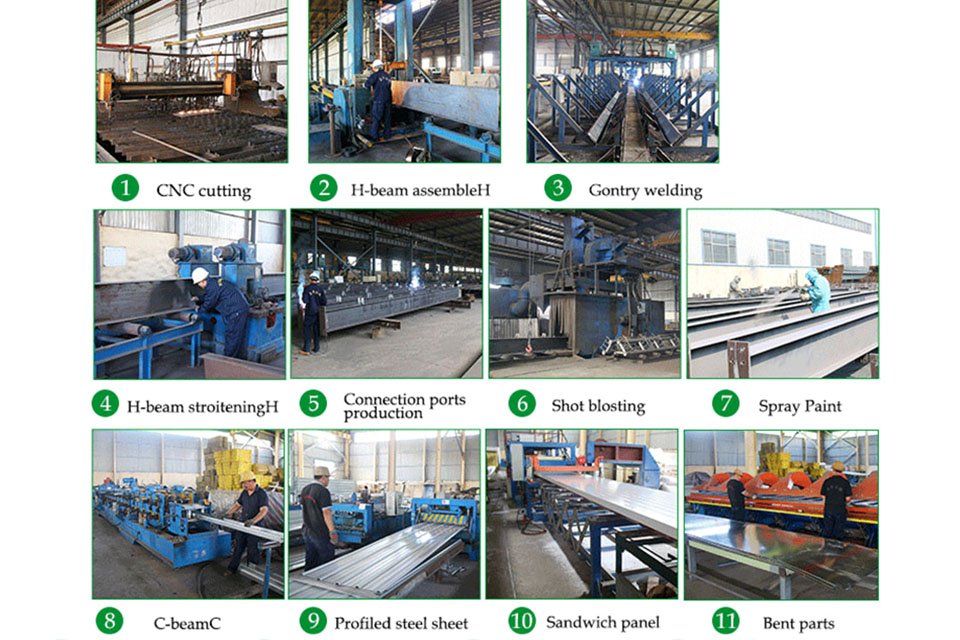

Production Processing & Shipping
