Reducing construction costs, saving installation time, so that low-income families can have high-quality, warm houses, is the goal and mission that Wantai has been pursuing. Through cooperation with the government or builders/investors, Wantai has successfully developed a civilian housing construction system. We will continue to improve the system and make it more perfect.
System
Wall system: Concrete block + cement + plaster + scraping putty + latex paint;
Roof system: Synthetic resin tile + glass silk wool insulation layer + color steel plate + gypsum board ceiling
Main Frame: column+beam+purlin, all by squre tube.
Low Cost Construction Design Steel Metal Structure Building Plans Price Prefabricated Warehouse
A: Components of galvanized light steel structure
1)Wall panel: sandwich panel with color steel two sides and EPS foam filling width:1200mm 1k=1200
2)Column: C style steel, H shape
3)Floor beam: C style steel,200*40*2.0mm
4)Floor: light magnesium board (our patent)
5)Stair: metal
6)Roof truss: angle steel
7)Purling tube metal
8)Roof panel: corrugated sandwich panel with color steel two sides
9)Door: aluminum frame with panel same as wall, with lock
Remark: this list is for your reference but the elements can vary.
Technique Index
Earthquake resistante: 8 fission intensity
Wind pressure: <31m/s about 10 grade
Roofing snow load; <80kg/m2
Roofing live load: 50kg/m2
1. Economic : quick installed and saving the cost of construction
2. the period of delivery is very short and can installed very easily
3. Reliable quality: mainly produced in the factory and control the quality
4. big space: the max span of prefab steel structure can reach 80meters
5. antiseismic: because the weight is light
6. Flexible: can be dismantled and enlarged
7. Beautiful appearance: can use different colors
8. Long lifespan: can be used more than 30 years
B: The advantages of light steel structure
1)Economic : quick installed and saving the cost of construction
2)Reliable quality: mainly produced in the factory and control the quality
3)big space: the max span of prefab steel structure can reach 80meters
4)antiseismic: because the weight is light
5)Beautiful appearance: can use different colors
6)Long lifespan: can be used more than 50 years
C: If you need us to design the light steel building for you, we need to know the following:
1. rain load
2. live load
3.snow load
4.wind load
5.whether using the crane 6. length,wide,height
D :Features
Attractive design- -the whole house looks beautiful and elegant. The inner, outer walls and the roof boarding all use the color steel sandwich panel, the material is polystyrene foam.
Light weight and convenient in shipping.
Easy to assemble and dismantle: the house can be rebuilt for dozens of times. The assembling only requires simple tools: plugs and screw.
Firm structure- the house adopts steel frame structure ans sandwich panels.Our houses are completely waterproof.
The house can be customized. The roof, wall, door, windows can be chosen by the customer.
Durable--the steel frame parts are all processed with anti-corrosion coating and can be used for as long as 20 years.

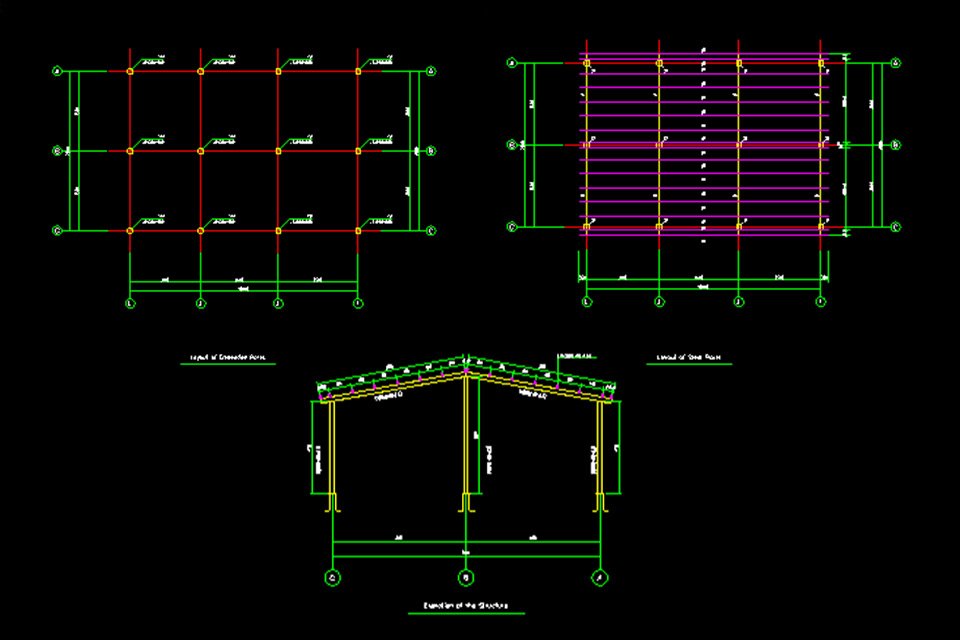

Installation and Design
